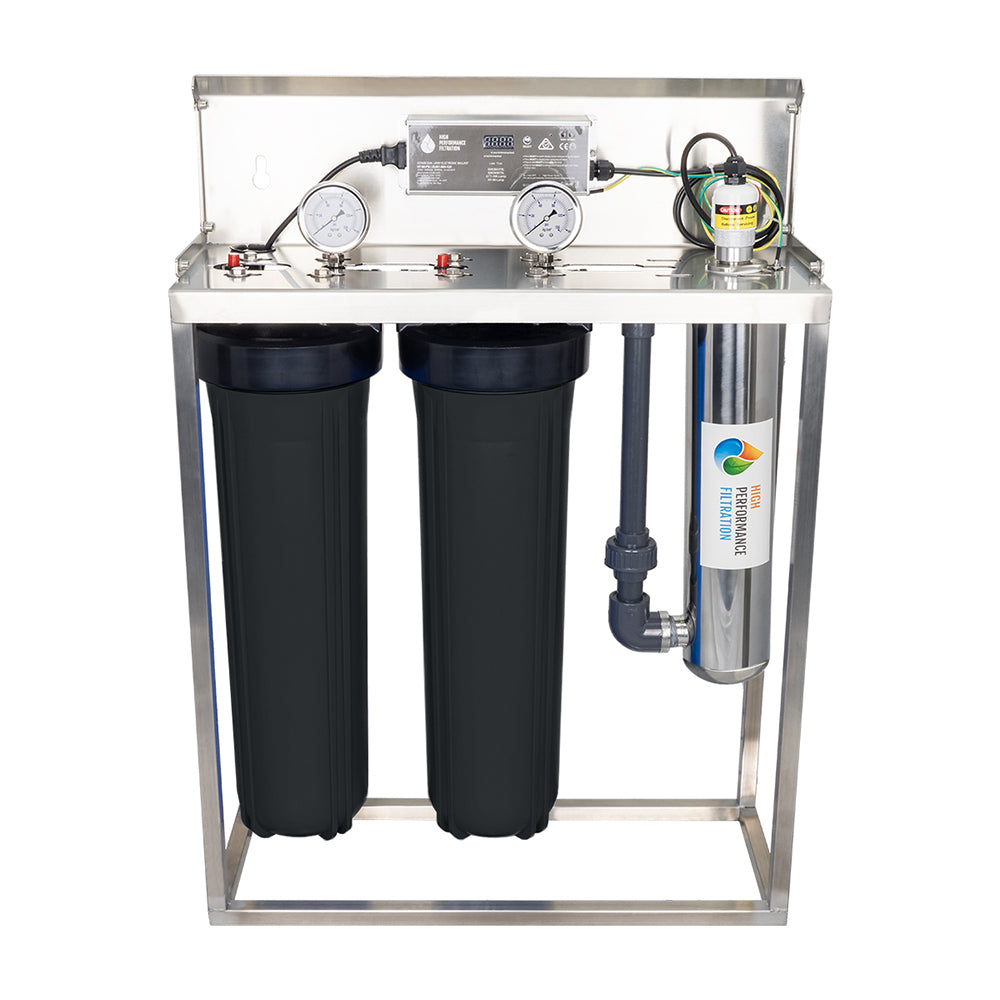

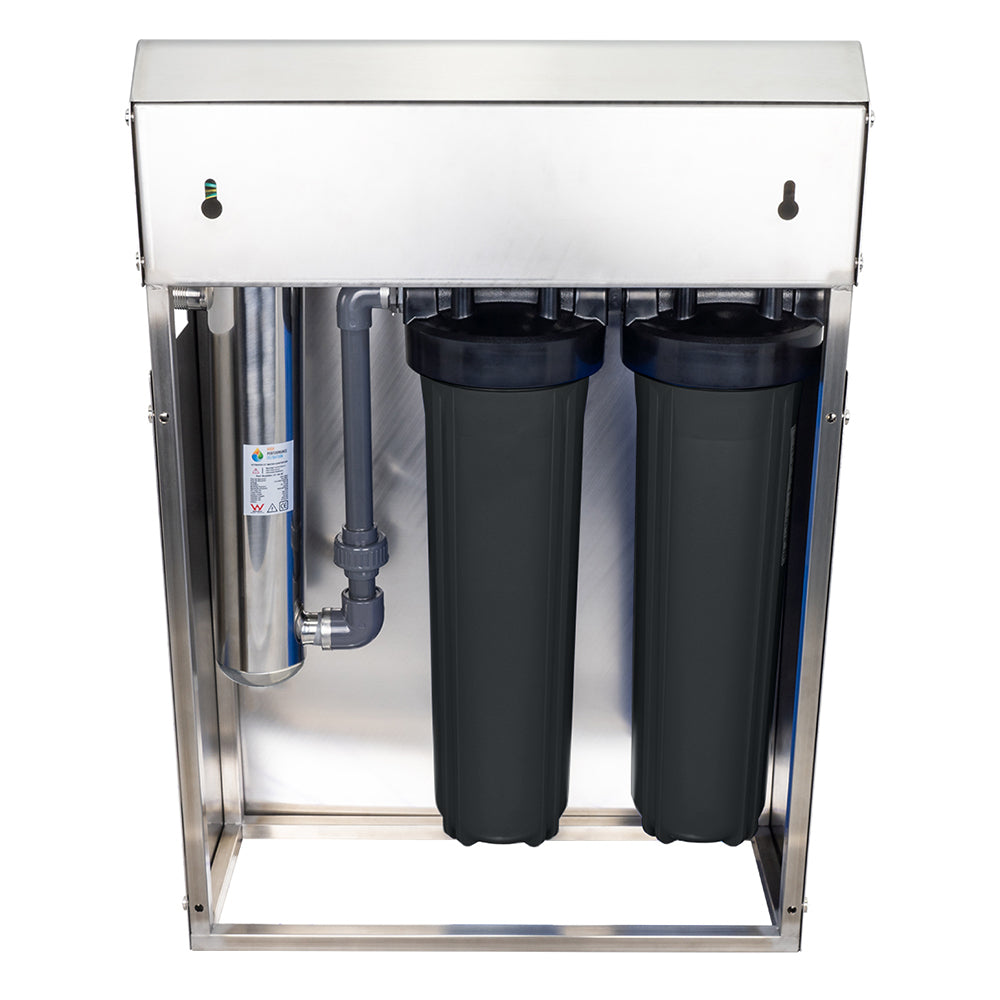

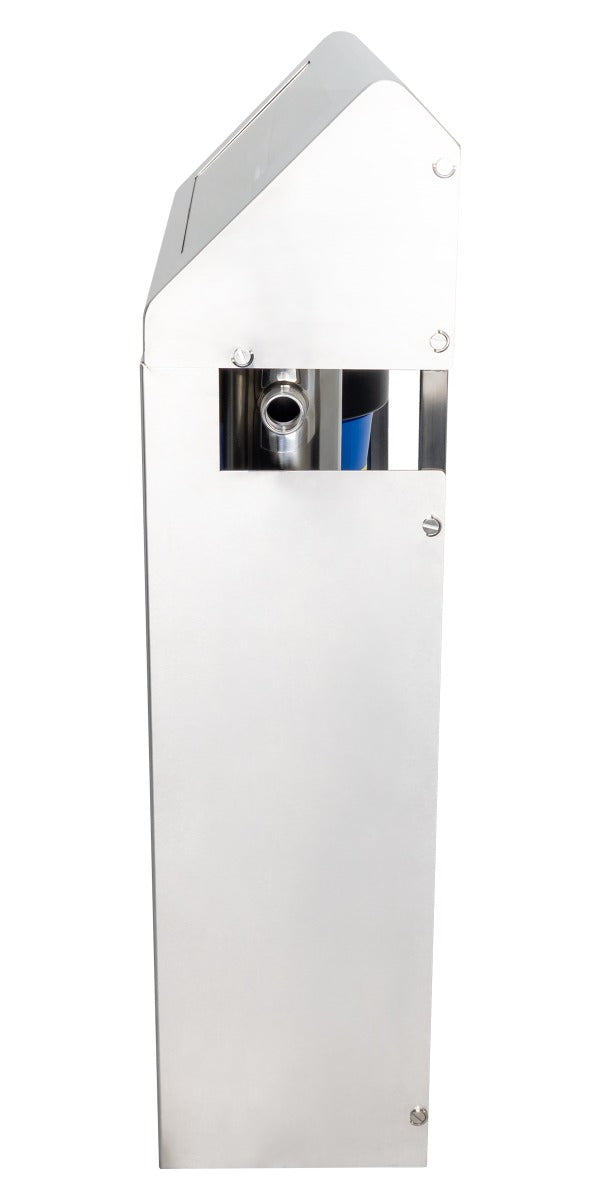

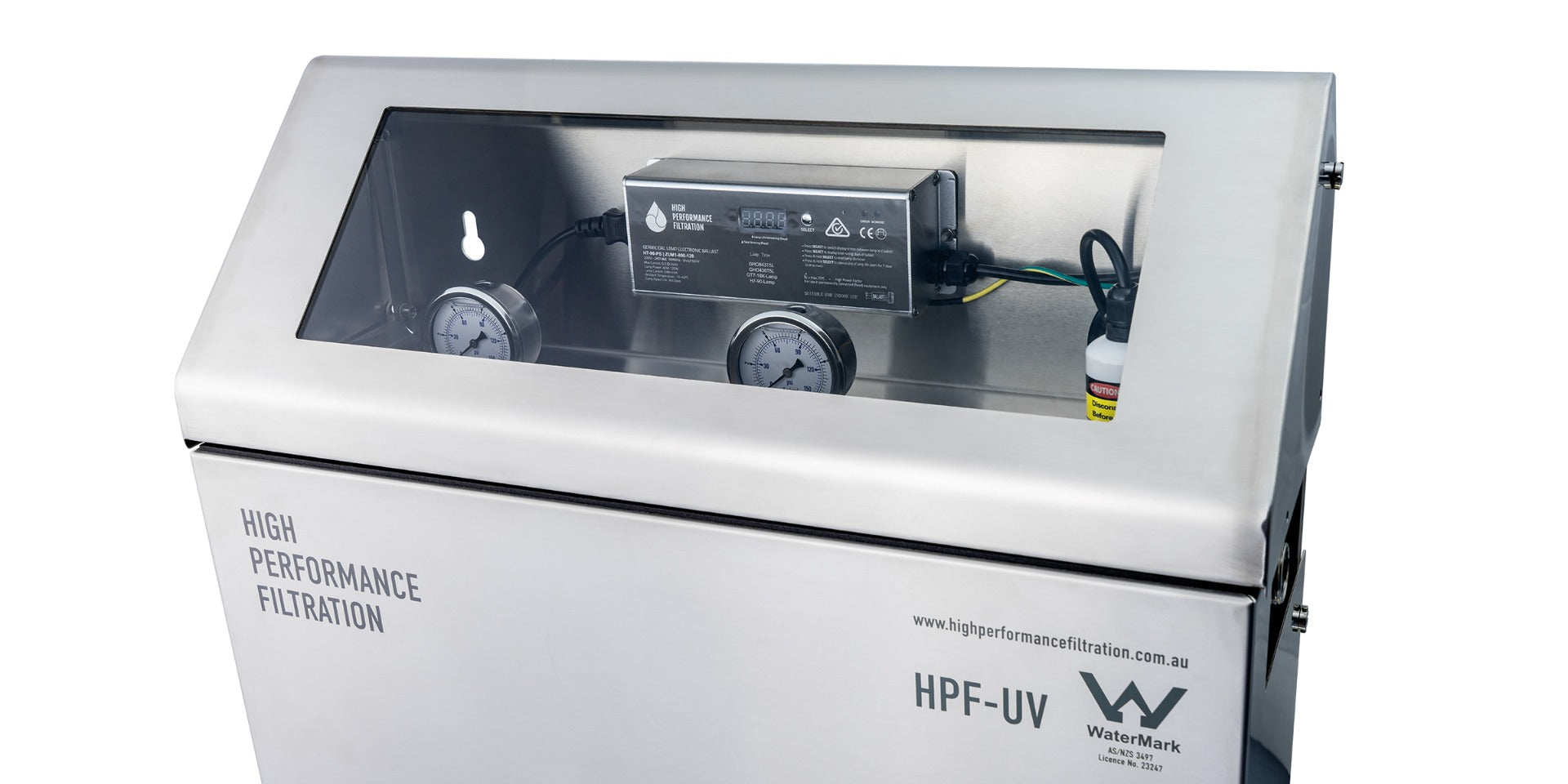

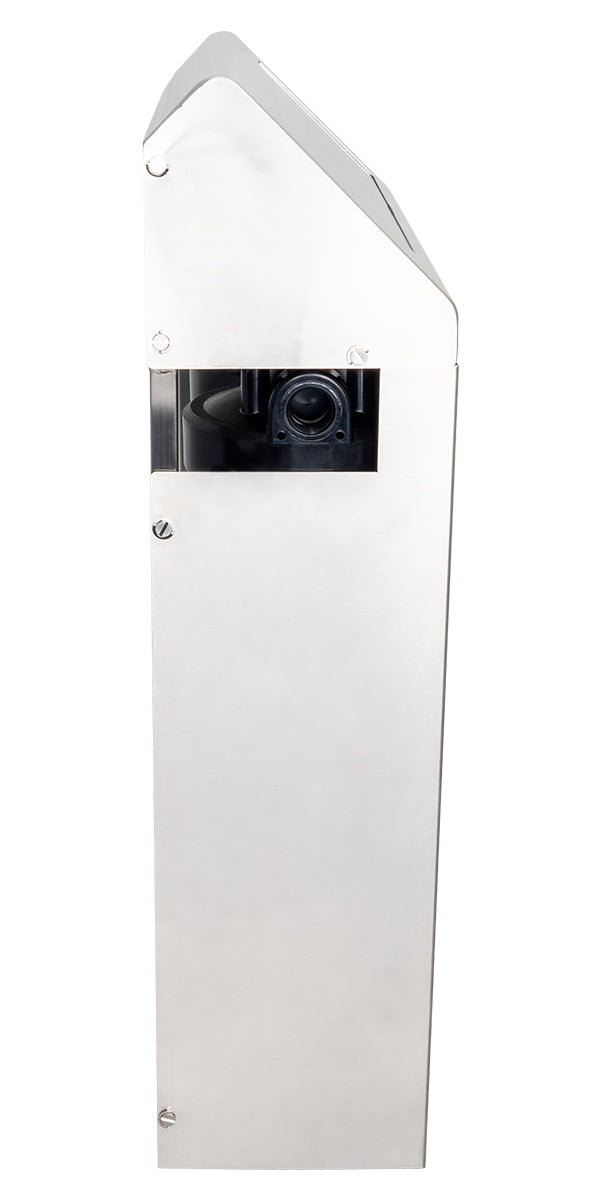

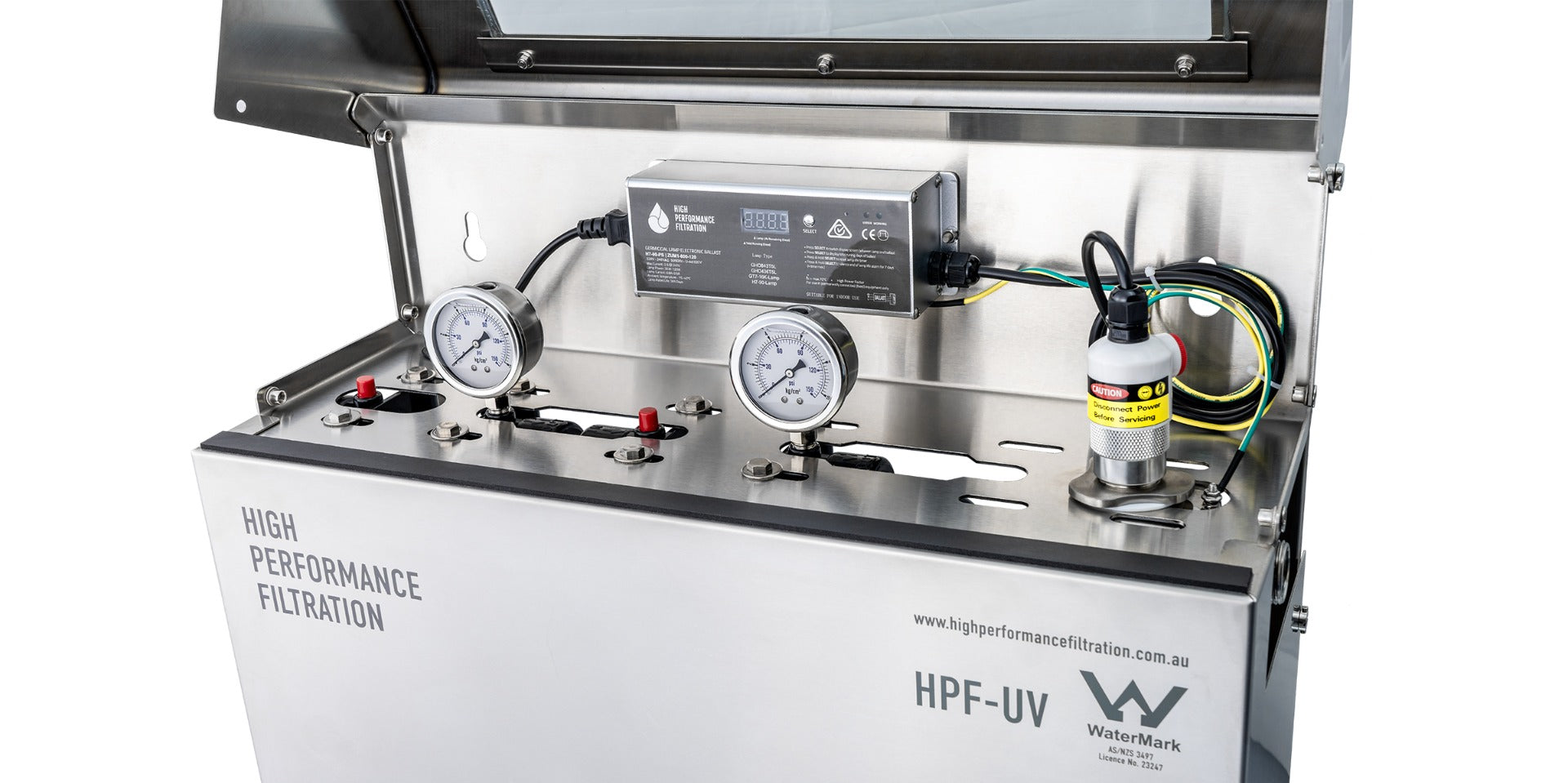

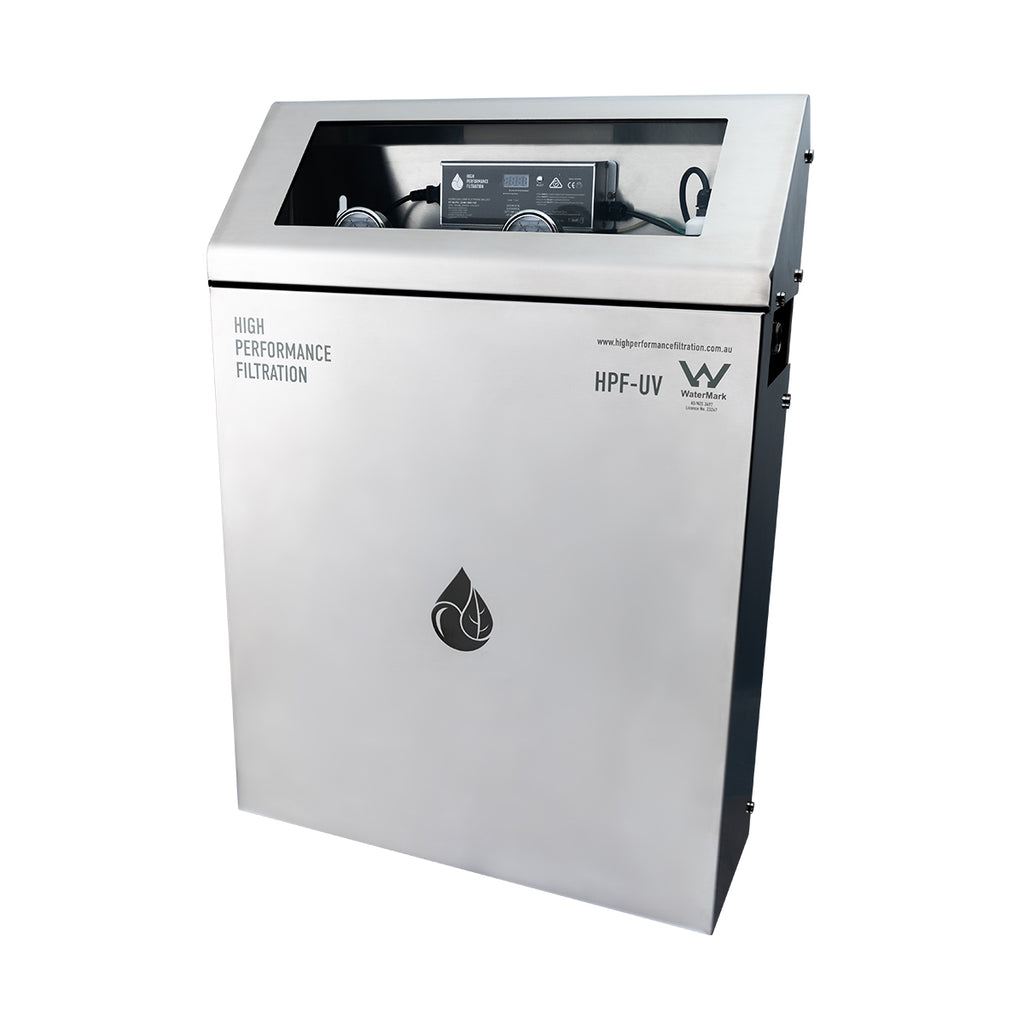

High Performance | Weather Resistant Twin Filter + UV Whole House Water Sanitation System

Our NEW High Performance Weather Resistant Twin Filter + Ultraviolet Whole House Water Sanitation System has been specifically designed to withstand the harsh conditions of the Australian environment, protecting your whole house filter investment from UV Exposure, Heat Damage, Corrosion, and Rust, and providing safe, clean, and sweet-tasting water for customers on rain/tank water. Just as you would protect any other system with electrical components from the weather, this unit is a must for those who can't afford to lose access to sanitised water, in addition to maintaining a neat-looking home exterior. This set-up features twin housings with your choice of filters (Filters Sold Separately, see Options Below - we generally recommend the 5 Micron Pleated Sediment + 5 Micron Silver Impregnated Coconut Carbon to improve clarity, tastes, odours and filter life), whilst the chemical-free High Flow Ultraviolet Sanitation System kills 99.9% of bacteria, parasites, and viruses for safe consumption from all outlets including the kitchen, bathroom, and shower. Please Note: Even though the UV System that comes with this kit is capable of filtration at 75-105 Litres Per Minute, the flow rate capacity of the entire filtration system is limited to a max flow of 60 Litres Per Minute due to the 20" x 4.5" sized filter housing.

Specs/Performance

• Product Description: High Performance | Weather Resistant Twin Filter + UV Whole House Water Sanitation System
• Part Number: HPF-UV
• Dimensions H/W/D (cm): 87/61/22
• Operating Pressure: 20 psi (140 kPa) - 70 psi (500 kPa)
• Operating Temperature: 1°C - 50°C (protect from freezing temperatures)
• Watermark Certified: Yes under Certificate No. 23247
• Connection Type:
  • Inlet: 1" BSP Female
  • Outlet: 1" BSP Male OR 3/4" BSP Female
• UV System
  • Dosage + Flow Rates
    • 40mJ/cm² @ 75L/Min
    • 30mJ/cm² @ 105L/Min
    • Earthing: Before operating this unit, it must be earthed. Simply attach the supplied earthing cable from the UV chamber to the UV Ballast
    • UV systems are not designed to be turned on and off. Doing this may shorten your lamp life. Lamps should be changed every year. The lamp may still be working, but after 1 year, the power may not be able to kill all bacteria. The Quartz thimble should be replaced every 2 years. If hardness is high it is recommended to service and clean the UV thimble every 6 months or as required to remove and scale that may build up.
    • Please Note: Even though the UV System that comes with this kit is capable of filtration at 75-105 Litres Per Minute, the flow rate capacity of the entire filtration system is limited to 60 Litres Per Minute due to the 20" x 4.5" sized filter housing.
  • Replacement Parts:
    • H7-90-Lamp - 48W High Output UV Lamp, 4 Pin 436mm length
    • H7-90-Thimble - Quartz Thimble 470mm length, 23mm outer diameter
    • GT7-2NSF-OR - 1x O-Ring 23mm outer diameter
    • H7-90-PS - Certified 4 Pin Ballast 42-105W (240V) Australian Plug + Earthing Cable
• Cartridges
  • Cartridge Size: 20" x 4.5" (Extra Large)
  • Cartridge Life: 6-12 Months depending on inlet water quality.
• Warranty
  • See Instruction Manual for Details
• Pre-Treatment Specs
  • Hardness < 120 mg/L
  • Turbidity < 1.0 NTU
  • Iron < 0.3 mg/L
  • Manganese < 0.05 mg/L
  • Tannins < 0.1 mg/L
  • Filtration < 5uM Particulate Filtration
  • If your water quality parameters do not meet these criteria, please contact us for pre-treatment recommendations.
